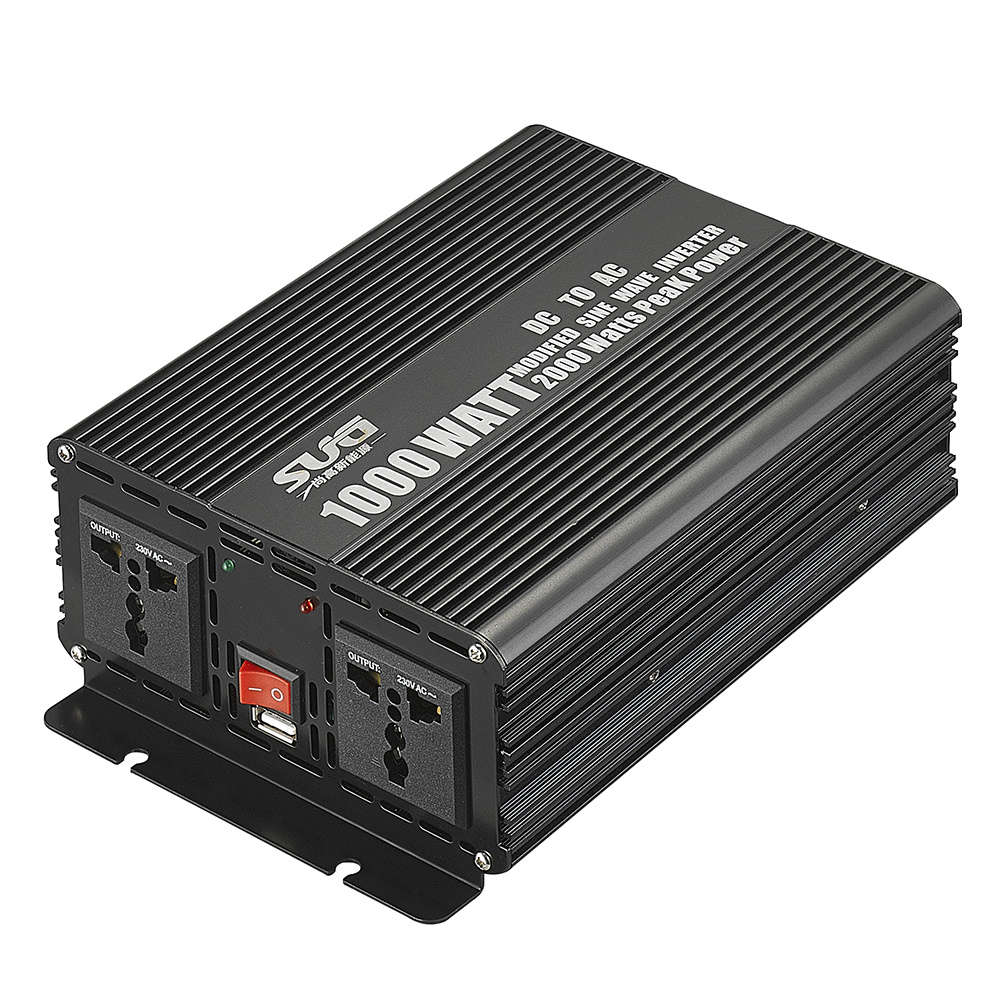

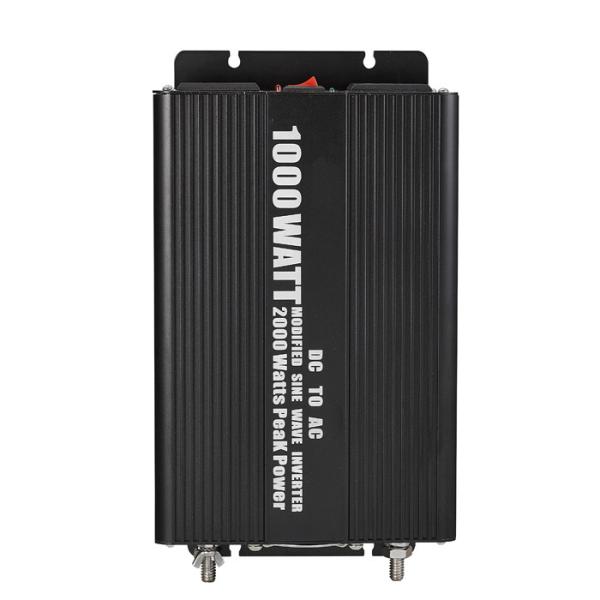

1000W 240VAC Modified Sine Wave Inverter

Brand Name : SUG

Model Number : SGM-1000W

Certification : CE & ROHS & FCC & PSE

Place of Origin : China

MOQ : 1pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000pcs/month

Delivery Time : 15 working days

Packaging Details : Carton

Model : SGM-1000W

Rated power : 1000W

Peak power : 2000W

Input voltage : 12V/24V/48V

Output voltage : 110V/220V/230V/240V

USB Port : 5VDC

Frequency : 50/60Hz±3

Output waveform : Modified Sine Wave

Efficiency : More than 85%

Warranty : 12 Months

Type : DC/AC Inverters

Output type : Single

Application : Home Appliance,Solar System,Off-grid System/Car/Boat,vehicle

Soft Start : Yes

Product Size : 24.5*15*7.7

N.W./unit(kg) : 2

Meas : 54*34*42/8pcs

G.W./unit(kg) : 18.7

Contact Now

1000W 240VAC Modified Sine Wave Inverter

Model: SGM-1000w

Rated power: 1000w

Peak power: 2000w

Cooling way: intelligent fan

Specification:

1000W output power and 2000W surge power.
Suitable for mobile AC power used in car, household and industry.
12/24/36/48/60/72/96VDC
110/120/220/230/240VAC
USA/EU/UK/Australia/South Africa…socket/outlet

1000W 240VAC Modified Sine Wave Inverter

Products Specification :

Model	SGM1000A-121	SGM1000A-122	SGM1000A-241	SGM1000A-242	SGM1000A-481	SGM1000A-482
Rated Power	1000W
Surge Power	2000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 1A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Modified Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
Working Temperature	-10ºC - +50ºC
Net Dimension	24.5157.7cm (L×W×H)
Inner Box Dimension	28.519.27.6cm(L×W×H)
Meas./Ctn	543442cm/8 pcs
N.W./Unit	1.9kg
G.W./Ctn	18.7KGS
Packing	Carton
Warranty	1 Years
